The company needs 48 hosts in each subnet. Given the network ID 192.168.0.0/24, how many subnets can they create?

By On



How to do IP Subnetting part 2?



To determine how many subnets can be created from the 192.168.0.0/24 network while accommodating 48 hosts in each subnet, let's follow these steps:

  1. Calculate the number of host bits needed:

    • 48 hosts + 2 (network address and broadcast address) = 50 total addresses needed

    • The smallest power of 2 that can accommodate 50 is 64 (2^6)

    • So we need 6 host bits


  3. Determine the subnet mask:

    • Original network is /24, so we have 8 bits available in the last octet

    • We need 6 bits for hosts, so we can use 2 bits for subnetting

    • New subnet mask will be /26 (24 + 2)


  5. Calculate the number of subnets:

    • With 2 bits for subnetting, we can create 2^2 = 4 subnets


Therefore, the company can create 4 subnets from the 192.168.0.0/24 network, each accommodating 48 hosts.

The subnets will be:

  1. 192.168.0.0/26 (usable range: 192.168.0.1 - 192.168.0.62)

  2. 192.168.0.64/26 (usable range: 192.168.0.65 - 192.168.0.126)

  3. 192.168.0.128/26 (usable range: 192.168.0.129 - 192.168.0.190)

  4. 192.168.0.192/26 (usable range: 192.168.0.193 - 192.168.0.254)

Each subnet will have 62 usable host addresses, which is more than enough for the required 48 hosts per subnet.

Comments

Post a Comment

Popular posts from this blog

Intune Windows Autopilot Steps-by-Step.

By On
  What is Windows Autopilot? Windows autopilot is a modern way to manage or image a PC, wherever users are as long as they are connected to the Internet. You can test in Hyper-V. Benefits of Autopilot: Making it easier to set up, configuring through the internet, requiring no manual intervention, letting users take charge of the setup, adjusting settings based on user groups, working well with up-to-date management tools, ensuring devices meet security standards, and smoothly updating features. Intune Windows Autopilot Steps-by-Step? Go to Https://admin.microsoft.com Sing-in with your tenet : administrator@xyz2024a.onmicrosoft.com Click on Admin centers > Identity Now, In https://entra.microsoft.com > search Mobility (MDM ( mobile device management) and WIP) Click on “Microsoft Intune” Now Enable Intune Policy: Go to Intune portal page : https://intune.microsoft.com    Click on Devices (from left side) > Windows (by Platform) > windows devices   Now create a windows secu
Read more

How to Map Network Drive using Group Policy Preferences?

By On

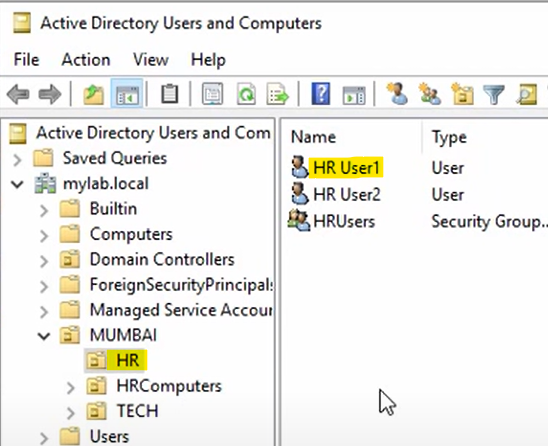

  How to Map Network Drive using Group Policy Preferences? We are going to a Map drive for the HR Department. Double click on the HRUser Group > Member tab You can see we have only one member added in the Security Group ( HR User1). Before creating a Group Policy, let’s create one HRSharedData Folder in the file server or for a test you can create in the DC1 server also. Right -click on HRSharedDATA folder > Properties > Sharing Tab > advanced Sharing Chick on “ Share this folder ”  > click on OK . You should copy the Network Path : we need that path later on. And  click on close . Now it's time to create a GPO. In DC1 server, Click on Tool > Group Policy Management option. You should see GPO windows Now, click on Domains > mylab.local > Group Policy Objects  Right-Click on GP object > click on New In New GPO Give Name: like below and  Click ok . You  can see the GPO in the left side column. Now we should have to configure or edit the created GP
